UP
CONFIGURATION

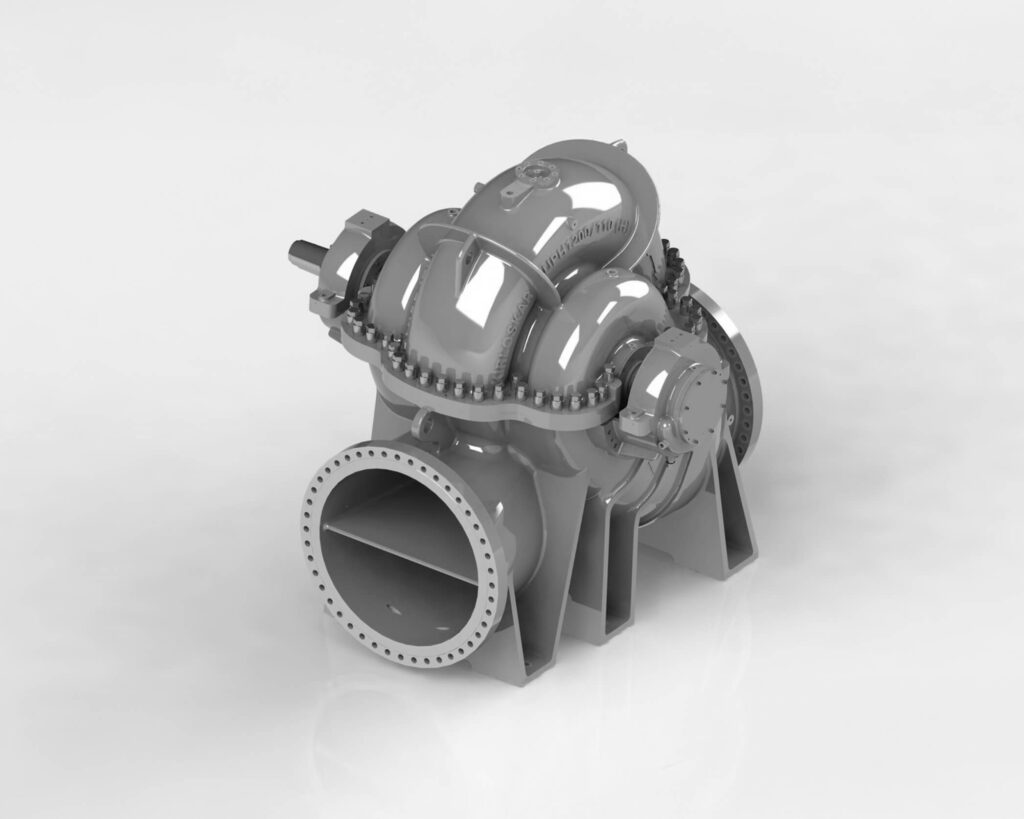

Axially split case – horizontal electric motor or diesel engine driven. Vertical open shaft or direct mounted electric motor.
DISCHARGE & PERFORMANCE
- Delivery up to 1200 mm
- Flows up to 24,120 m³/h
- Head up to 180 m
FEATURES
- Axially split casing – rotating element can be removed without disturbing pipework
- High hydraulic efficiencies
- Enhanced suction performance and low NPSH
- Double entry impellers reduce end thrust, increase efficiency and bearing life
- Shaft sleeves fitted as standard for soft packed pumps and as an alternative for mechanical seals. Stainless steel shafts fitted as standard for mechanical seals
- 40 models. Module design for maximum interchangeability
- Grease lubrication
- Soft packing or mechanical seals
- 50 or 60 hz operation
COLOUR OPTIONS
Available in BLUE BS4800 18E53 (Water & Industrial) or RED RAL 3000 (Fire) as standard, with custom colour options available on request.
