PACKAGE SETS
PACKAGED FIRE SETS
CONFIGURATION

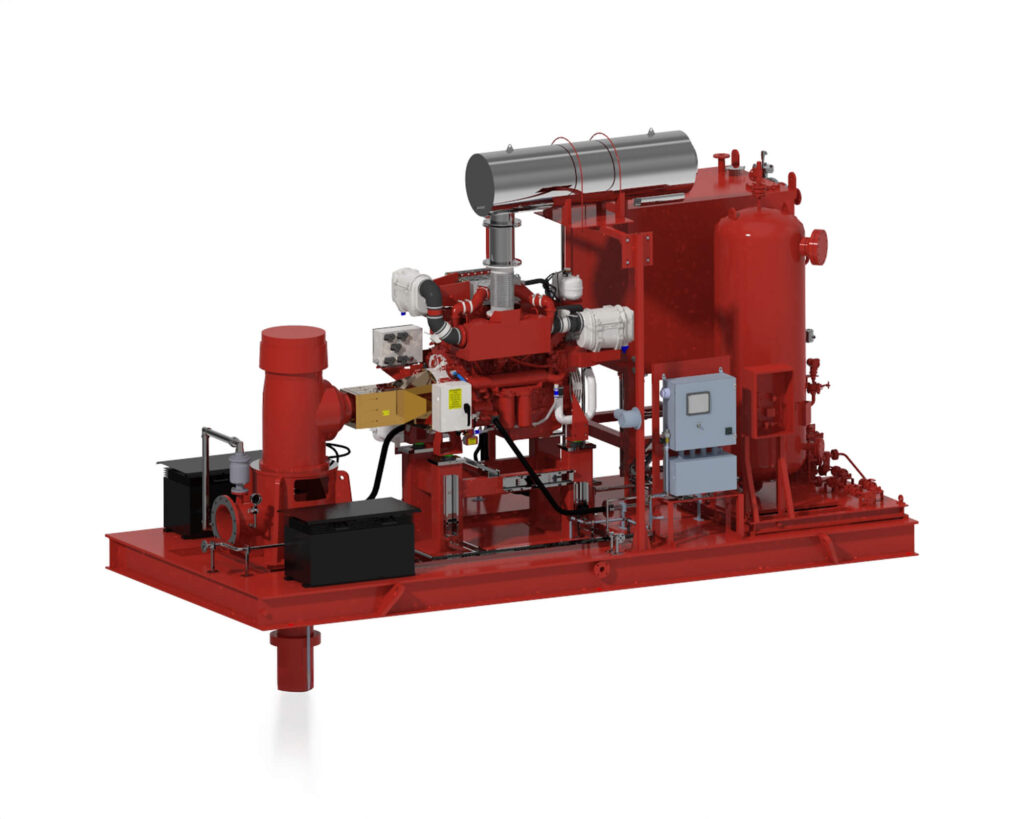

Single or multiple pump package sets, incorporating either a vertical or horizontally mounted pump -electric motor, hydraulic motor or diesel engine driven.
DISCHARGE & PERFORMANCE
- End Suction (Single Stage) – 32 mm to 150 mm. Outputs up to 500 m³/h. Heads up to 15.2 bar
- Outputs up to 230 l/s. Heads up to 60 bar
- Split Case – 80 mm to 300 mm. Heads up to 44.5 bar (Approved fire set)
- Multi-stage multi-outlet – 100 mm to 125 mm. Outputs up to 315 l/s. Heads up to 60 bar
- Vertical Turbine – 200 mm to 508 mm Outputs up to 9000 m³/h
- Multi-stage / multi-outlet – 50 mm to 250 mm. Outputs up to 850 m³/h. Heads up to 850 m. Up to 140°C
FEATURES
- Integrated design, all mounted on one common baseplate.
- Robust baseplate design, either box section or channel with drip pan.
- Frame mounted controller, fully wired.
- Baseplate mounted engine start batteries, either lead acid or nickel cadmium type. Battery box, if required.
- Fully integrated secondary start system: either battery, pneumatic or hydraulic as required.
- Either freestanding or baseplate mounted fuel tank, including interconnecting pipework, valves and instrumentation.
- Optional acoustic or weatherproof canopy in carbon or stainless steel, individually designed to suit customer requirements
- All components fully cabled to suit the operational environment
- Painting of the complete skid in accordance with cust
- Extensive string testing of the complete package to ensure performance
- All packages can be fully 3D modelled as an option
- Compliance to NFPA 20 or other international standards, as applicable.
- CE/UKCA Marking
COLOUR OPTIONS
Typically in RED RAL 3000, BS4800 04E53 with other red colour options available on request.
